GRTSM2016C

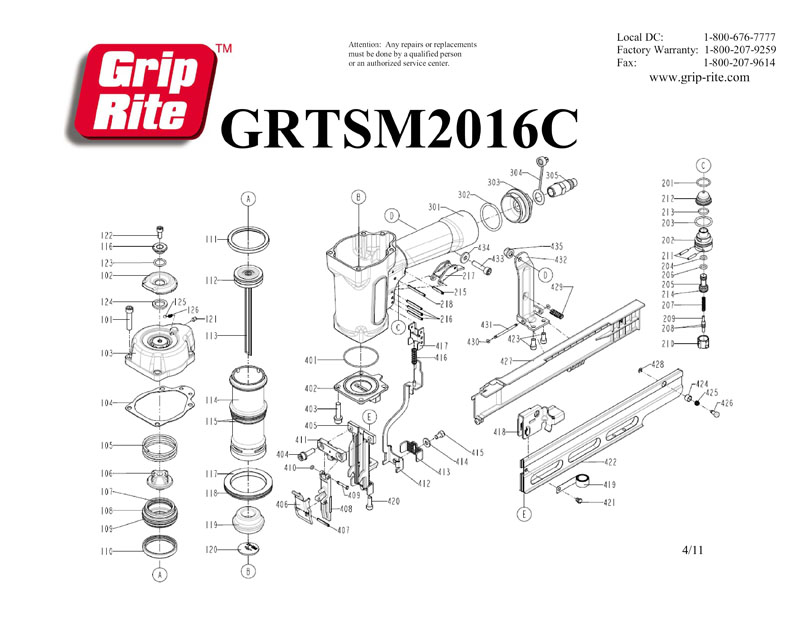

Tool Diagram


Ordering Instructions:

Scroll down the page to the parts listing below.


Find the parts that you are looking for and enter the quantity needed in the boxes on the right of the page.


Click Add Parts to Cart button at the bottom of the page to add these items to your Shopping cart.

Contact Us:

Fig # Part # Part Name Availability Price
101 GRBN987 HEX.SOC.HD.BOLT
Ships in 7-10 business days
$1.76
102 GRBN879 DEFLECTOR
Ships in 7-10 business days
$5.34
103 GRBN988 CAP
Ships in 7-10 business days
$54.56
104 GRBN844 CYLINDER CAP SEAL
Ships in 7-10 business days
$7.84
105 GRBN845 COMPRESSION SPRING
Ships in 7-10 business days
$4.74
106 GRBN846 SEAL
Ships in 7-10 business days
$10.66
107 GRBN847 O-RING
Ships in 7-10 business days
$1.94
108 GRBN848 HD.VALVE PISTON
Ships in 7-10 business days
$24.44
109 GRBN849 O-RING
Ships in 7-10 business days
$2.76
110 GRBN850 COLLAR
Ships in 7-10 business days
$6.56
111 GRBN851 PRESS RING
Ships in 7-10 business days
$4.72
112 GRBN852 O-RING
Ships in 7-10 business days
$5.34
113 GRBN853 DRIVER UNIT
Ships in 7-10 business days
$81.34
114 GRBN854 CYLINDER
Ships in 7-10 business days
$56.28
115 GRBN275 O-RING
Ships in 7-10 business days
$1.94
Fig # Part # Part Name Availability Price
116 GRBN880 WASHER
Ships in 7-10 business days
$2.72
117 GRBN855 CYLINDER SPACER
Ships in 7-10 business days
$13.86
118 GRBN277 O-RING
Ships in 7-10 business days
$1.94
119 GRBN856 BUMPER
Ships in 7-10 business days
$12.30
120 GRBN857 DRIVER GUIDE
Ships in 7-10 business days
$2.46
121 GRBN305 HEX.SOC.HD.SCREW
Ships in 7-10 business days
$1.56
122 GRBN989 HEX.SOC.HD.BOLT
Ships in 7-10 business days
$1.76
123 GRBN990 O - RING
Ships in 7-10 business days
$1.76
124 GRBN697 RUBBER PAD
Ships in 7-10 business days
$1.72
125 GRBN991 BALL
Ships in 7-10 business days
$1.44
126 GRBN992 POSITIONING SPRING
Ships in 7-10 business days
$1.44
201 GRBN588 O - RING
Ships in 7-10 business days
$1.76
202 GRBN556 PLUNGER CAP
Ships in 7-10 business days
$7.72
203 GRBN582 O - RING
Ships in 7-10 business days
$1.76
204 GRBN421 O-RING
Ships in 7-10 business days
$1.72
Fig # Part # Part Name Availability Price
205 GRBN527 VALVE PLUNGER
Ships in 7-10 business days
$1.72
206 GRBN580 O - RING
Ships in 7-10 business days
$1.76
207 GRBN559 SPRING
Ships in 7-10 business days
$1.76
208 GRBN592 O - RING
Ships in 7-10 business days
$1.76
209 GRBN630 PLUNGER
Ships in 7-10 business days
$3.00
210 GRBN555 TRIGGER VALVE HEAD
Ships in 7-10 business days
$2.46
211 GRBN518 PIN
Ships in 7-10 business days
$1.72
212 GRBN560 COVER-PLUNGER
Ships in 7-10 business days
$1.76
213 GRBN589 O - RING
Ships in 7-10 business days
$1.76
214 GRBN423 O-RING
Ships in 7-10 business days
$1.72
215 GRBN641 SPIRAL PINS
Ships in 7-10 business days
$1.76
216 GRBN718 SPIRAL PIN
Ships in 7-10 business days
$1.76
217 GRBN858 TRIGGER UNIT
Ships in 7-10 business days
$11.92
218 GRBN859 SPIRAL PIN
Ships in 7-10 business days
$1.76
301 GRBN860 GUN BODY
Ships in 7-10 business days
$116.00
Fig # Part # Part Name Availability Price
302 GRBN320 O-RING
Ships in 7-10 business days
$1.66
303 GRBN720 END CAP
Ships in 7-10 business days
$13.10
304 GRBN605 AIR PLUG CAP
Ships in 7-10 business days
$1.76
305 GRBN620 AIR PLUG
Ships in 7-10 business days
$5.26
401 GRBN861 O-RING
Ships in 7-10 business days
$1.78
402 GRBN862 BASE
Ships in 7-10 business days
$34.76
403 GRBN753 HEX.SOC.HD.BOLT
Ships in 7-10 business days
$1.84
404 GRBN863 BOLT ASSY
Ships in 7-10 business days
$1.76
405 GRBN864 BACK PLATE (DRIVER GUIDE
Ships in 7-10 business days
$36.66
406 GRBN865 LOCK HANDLE UNIT
Ships in 7-10 business days
$9.32
407 GRBN996 SPIRAL PIN
Ships in 7-10 business days
$1.76
408 GRBN866 DRIVER GUIDE COVER A
Ships in 7-10 business days
$22.64
409 GRBN867 FIXED PIN
Ships in 7-10 business days
$2.54
410 GRBN182 URETHANE RETAINER
Ships in 7-10 business days
$1.56
411 GRBN868 DRIVER GUIDE COVER B
Ships in 7-10 business days
$14.86
Fig # Part # Part Name Availability Price
412 GRBN869 SAFETY B UNIT
Ships in 7-10 business days
$13.66
413 GRBN870 SAFETY A
Ships in 7-10 business days
$6.44
414 GRBN431 FLAT WASHER
Ships in 7-10 business days
$1.72
415 GRBN289 Hex.Soc.Hd.Bolt 6 - 7
Ships in 7-10 business days
$1.56
416 GRBN665 SAFETY SPRING
Ships in 7-10 business days
$1.76
417 GRBN871 SAFETY GUIDE
Ships in 7-10 business days
$3.96
418 GRBN872 PUSHER
Ships in 7-10 business days
$14.24
419 GRBN873 SPRING
Ships in 7-10 business days
$14.90
420 GRBN685 BOLT ASSY
Ships in 7-10 business days
$1.76
421 GRBN874 FIXED PIN
Ships in 7-10 business days
$2.26
422 GRBN875 MAGAZINE A
Ships in 7-10 business days
$41.34
423 GRBN302 HEX.SOC.HD.BOLT
Ships in 7-10 business days
$1.56
424 GRBN876 DEEP IMPACT SOCKET 1
Ships in 7-10 business days
$1.76
425 GRBN657 LATCH SPRING
Ships in 7-10 business days
$1.92
426 GRBN656 DOOR LATCH
Ships in 7-10 business days
$2.44
Fig # Part # Part Name Availability Price
428 GRBN4 E-RING
Ships in 7-10 business days
$1.56
429 GRBN664 SPRING
Ships in 7-10 business days
$1.76
430 GRBN693 O - RING
Ships in 7-10 business days
$1.76
431 GRBN672 HINGE POINT
Ships in 7-10 business days
$2.84
432 GRBN877 BRACKET UNIT
Ships in 7-10 business days
$9.66
433 GRBN878 HEX.SOC.HD.BOLT
Ships in 7-10 business days
$1.72
434 GRBN574 FLAT WASHER
Ships in 7-10 business days
$1.76
435 GRBN579 BOLT CAP
Ships in 7-10 business days
$1.76
436 GRTRK300 Trigger Valve Kit
Ships in 7-10 business days
$24.94
