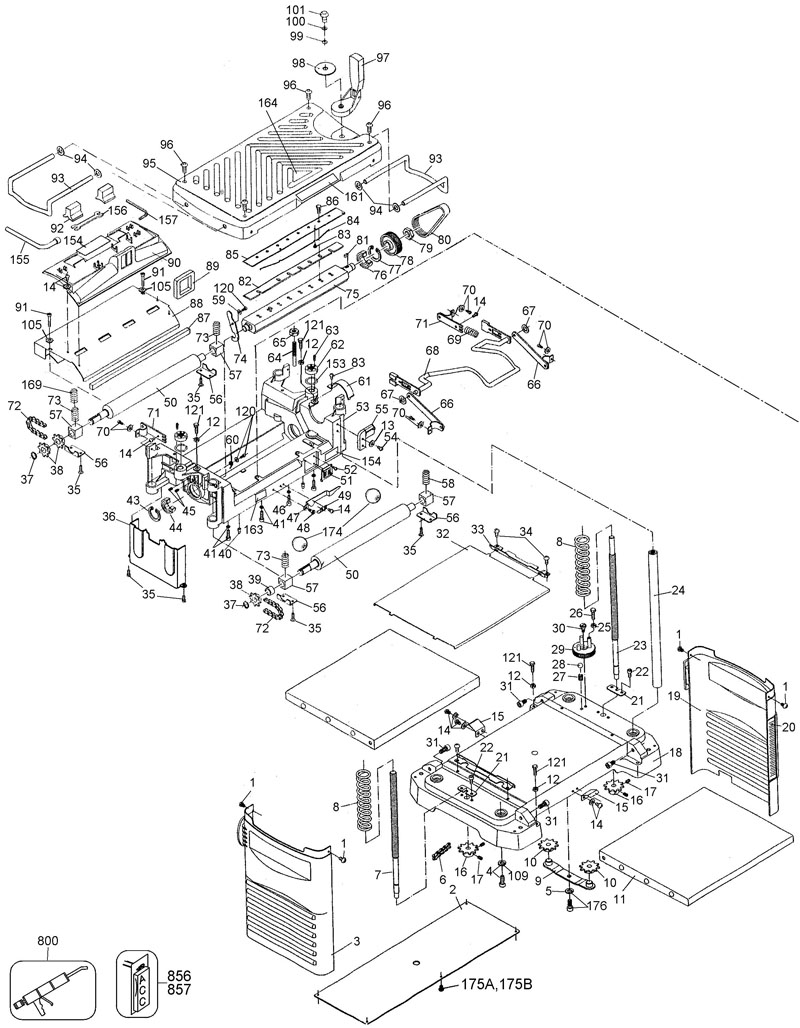

DW733 TYPE 1


Tool Diagram

Ordering Instructions:

Scroll down the page to the parts listing below.

Find the parts that you are looking for and enter the quantity needed in the boxes on the right of the page.

Click Add Parts to Cart button at the bottom of the page to add these items to your Shopping cart.

Contact Us:

Enter the following values in the field below: captcha
Fig # Part # Part Name Availability Price
1 286052-00 SCREW
Ships in 7-10 business days
$1.00
2 285895-00 COVER,BOTTOM
Ships in 7-10 business days
$7.61
3 285896-00 COVER,LEFTSIDE
Ships in 7-10 business days
$11.42
4 429699-00 SCREW & WASHER
Ships in 7-10 business days
$1.00
5 429701-00 SCREW & WASHER
Ships in 7-10 business days
$1.00
6 285898-00 CHAIN
Ships in 7-10 business days
$13.38
7 285899-00 SCREW
Ships in 7-10 business days
$11.42
8 285900-00 SPRING
Ships in 7-10 business days
$2.46
9 285901-00 PLATE,SPROCKET
Ships in 7-10 business days
$9.64
10 285902-00 SPROCKET
Ships in 7-10 business days
$3.90
11 285903-00 TABLE
Ships in 7-10 business days
$50.25
12 286256-00 NUT,HEX
Ships in 7-10 business days
$1.00
14 429669-00 SCREW & WASHER
Ships in 7-10 business days
$1.00
15 285907-00 PLATE,SPRING
Ships in 7-10 business days
$1.84
16 285908-00 SPROCKET
Ships in 7-10 business days
$3.90
Fig # Part # Part Name Availability Price
17 285909-00 SCREW
Ships in 7-10 business days
$1.00
18 285910-00 BASE
Ships in 7-10 business days
$144.71
19 285911-00 COVER,RIGHTSIDE
Ships in 7-10 business days
$11.42
20 285912-00 SCALE
Ships in 7-10 business days
$2.82
21 285913-00 PLATE
Ships in 7-10 business days
$1.52
22 285914-00 SCREW
Ships in 7-10 business days
$1.00
23 285915-00 SCREW
Ships in 7-10 business days
$11.42
24 285916-00 STRUT
Ships in 7-10 business days
$11.52
25 285917-00 NUT,HEX
Ships in 7-10 business days
$1.00
26 098022-25 HEX HD SCREW
Ships in 7-10 business days
$1.00
27 285918-00 SPRING
Ships in 7-10 business days
$1.00
28 285919-00 BALL,STEEL
Ships in 7-10 business days
$1.00
29 285920-00 TURRET
Ships in 7-10 business days
$8.69
30 285921-00 SCREW
Ships in 7-10 business days
$1.00
31 285922-00 SCREW
Ships in 7-10 business days
$1.00
Fig # Part # Part Name Availability Price
32 285923-00 PLATE,GASKET
Ships in 7-10 business days
$24.08
33 285924-00 PLATE,GUIDE
Ships in 7-10 business days
$3.00
34 285925-00 SCREW
Ships in 7-10 business days
$1.00
35 429735-00 SCREW
Ships in 7-10 business days
$1.00
36 285926-00 COVER,CHAIN
Ships in 7-10 business days
$3.36
37 285927-00 RING,RETAINING
Ships in 7-10 business days
$1.00
38 285928-00 SPROCKET
2 in stock
$3.90
39 285929-00 COLLAR
Ships in 7-10 business days
$1.52
40 285930-00 PIN
Ships in 7-10 business days
$1.00
41 429670-00 SCREW & WASHER
Ships in 7-10 business days
$1.00
43 285933-00 RING,RETAINING
Ships in 7-10 business days
$1.00
44 285934-00 BEARING,BALL
Ships in 7-10 business days
$7.61
45 285935-00 SCREW
Ships in 7-10 business days
$1.00
46 285936-00 SCREW
Ships in 7-10 business days
$1.00
47 285937-00 INDICATOR
Ships in 7-10 business days
$2.46
Fig # Part # Part Name Availability Price
48 285938-00 SCREW
Ships in 7-10 business days
$1.00
49 285939-00 PLATE,CONTACT
Ships in 7-10 business days
$3.36
50 285940-00 ROLLER
Ships in 7-10 business days
$45.01
51 285941-00 PLATE,SCALE
Ships in 7-10 business days
$4.15
52 330024-00 SCREW
Ships in 7-10 business days
$1.00
53 285942-00 HEAD
Ships in 7-10 business days
$142.63
54 429671-00 SCREW & WASHER
Ships in 7-10 business days
$1.00
55 285943-00 GLASS ASY,MAG.
Ships in 7-10 business days
$13.95
56 285944-00 BRACKET
Ships in 7-10 business days
$1.52
57 285945-00 BUSHING
Ships in 7-10 business days
$2.28
58 285946-00 SPRING
Ships in 7-10 business days
$1.14
60 285948-00 SPRING
Ships in 7-10 business days
$1.00
61 285949-00 COVER,PULLEY
Ships in 7-10 business days
$2.82
62 285950-00 NUT
Ships in 7-10 business days
$1.84
63 285951-00 SCREW
Ships in 7-10 business days
$1.00
Fig # Part # Part Name Availability Price
64 285952-00 STUD,THREADED
Ships in 7-10 business days
$1.84
65 285953-00 NUT,HEX
Ships in 7-10 business days
$1.00
66 285954-00 BRACKET,FRT ROD
Ships in 7-10 business days
$5.32
67 285955-00 RING,RETAINING
Ships in 7-10 business days
$1.00
68 285956-00 ROD ASSY.,CAN
Ships in 7-10 business days
$30.60
69 285957-00 SPRING
Ships in 7-10 business days
$1.14
70 429673-00 SCREW & WASHER
Ships in 7-10 business days
$1.00
71 285959-00 BRACKET,REARROD
Ships in 7-10 business days
$5.69
72 285960-00 CHAIN
1 in stock
$5.55
73 285961-00 SPRING
Ships in 7-10 business days
$1.52
74 285962-00 PLATE,STABLE
Ships in 7-10 business days
$2.46
75 285963-00 NO LONGER AVAILABLE   $0.00 No Longer Available
76 285964-00 BEARING,BALL
Ships in 7-10 business days
$11.42
77 285965-00 RING,RETAINING
Ships in 7-10 business days
$1.14
78 285966-00 PULLEY
Ships in 7-10 business days
$9.48
Fig # Part # Part Name Availability Price
79 285967-00 NUT
Ships in 7-10 business days
$1.00
80 285968-00 V-BELT
Ships in 7-10 business days
$19.09
81 285969-00 KEY
Ships in 7-10 business days
$1.00
82 DW7332 PLANER BLADES
Ships in 7-10 business days
$93.25
83 285971-00 SCREW
Ships in 7-10 business days
$1.00
84 285972-00 SPRING
Ships in 7-10 business days
$1.00
85 285973-00 BINDER,BLADE
Ships in 7-10 business days
$7.96
86 285974-00 SCREW
Ships in 7-10 business days
$1.00
87 285975-00 SEAL,DUST
Ships in 7-10 business days
$2.14
88 285976-00 DEFLECTOR,CHIP
Ships in 7-10 business days
$17.18
89 285977-00 SEAL,DUST
Ships in 7-10 business days
$1.00
90 285978-00 TRAY,TOOL
Ships in 7-10 business days
$12.02
91 429674-00 SCREW & WASHER
Ships in 7-10 business days
$1.00
92 285980-00 GAGE,BLADE SETG
Ships in 7-10 business days
$4.85
93 285981-00 HANDLE
Ships in 7-10 business days
$8.69
Fig # Part # Part Name Availability Price
94 285982-00 RING,RETAINING
Ships in 7-10 business days
$1.00
95 285983-00 COVER,TOP
Ships in 7-10 business days
$47.78
96 285984-00 SCREW
Ships in 7-10 business days
$1.00
97 285985-00 HANDLE ASSY.
1 in stock
$12.02
98 285986-00 PLATE,SCALE
Ships in 7-10 business days
$1.52
99 285987-00 RING,GASKET
Ships in 7-10 business days
$1.00
100 285988-00 WASHER,FLAT
Ships in 7-10 business days
$1.00
101 285989-00 SCREW
Ships in 7-10 business days
$1.00
102 285990-00 SWITCH,ON/OFF
Ships in 7-10 business days
$11.75
103 285991-00 SCREW
Ships in 7-10 business days
$1.00
104 285992-00 COVER,SWITCH
Ships in 7-10 business days
$1.84
105 429674-00 SCREW & WASHER
Ships in 7-10 business days
$1.00
106 285994-00 SCREW
Ships in 7-10 business days
$1.00
107 285995-00 WASHER,EX TOOTH
Ships in 7-10 business days
$1.00
108 285996-00 PLATE,SWITCH
Ships in 7-10 business days
$1.92
Fig # Part # Part Name Availability Price
109 429699-00 SCREW & WASHER
Ships in 7-10 business days
$1.00
110 285998-00 HOUSING,SWITCH
Ships in 7-10 business days
$15.33
111 285999-00 PIN
Ships in 7-10 business days
$1.00
112 286000-00 PLATE
Ships in 7-10 business days
$2.46
113 286001-00 SEAL,DUST
Ships in 7-10 business days
$1.92
114 286002-00 BEARING,BALL
Ships in 7-10 business days
$7.61
116 286003-00 CASE,GEAR
Ships in 7-10 business days
$34.42
117 286004-00 RELIEF,STRAIN
Ships in 7-10 business days
$1.92
118 286005-00 CLAMP,CORD
Ships in 7-10 business days
$1.00
119 286006-00 BREAKER,CIRCUIT
Ships in 7-10 business days
$7.96
120 429672-00 SCREW & WASHER
Ships in 7-10 business days
$1.00
121 489128-00 HEX SCREW
Ships in 7-10 business days
$0.85
122 286009-00 SCREW
Ships in 7-10 business days
$1.00
123 286010-00 SCREW
Ships in 7-10 business days
$1.00
124 286011-00 SPINDLE
Ships in 7-10 business days
$11.42
Fig # Part # Part Name Availability Price
125 286012-00 KEY,ROLL
Ships in 7-10 business days
$1.00
126 286013-00 BEARING,BALL
Ships in 7-10 business days
$7.61
127 286014-00 GEAR
Ships in 7-10 business days
$11.42
128 286015-00 SHAFT,GEAR
Ships in 7-10 business days
$11.42
129 286016-00 KEY,ROLL
Ships in 7-10 business days
$1.00
130 286017-00 GEAR
Ships in 7-10 business days
$15.33
132 286018-00 PIN
Ships in 7-10 business days
$1.00
134 286019-00 SHAFT,GEAR
Ships in 7-10 business days
$11.42
135 286020-00 KEY,ROLL
Ships in 7-10 business days
$1.00
136 286021-00 GEAR
Ships in 7-10 business days
$19.09
137 286022-00 CLIP,WIRE
Ships in 7-10 business days
$1.00
138 286023-00 COVER,GEAR CASE
Ships in 7-10 business days
$11.42
139 286024-00 BEARING,BALL
Ships in 7-10 business days
$7.61
140 286025-00 ARMATURE
Ships in 7-10 business days
$140.67
141 286026-00 SCREW
Ships in 7-10 business days
$1.00
Fig # Part # Part Name Availability Price
142 286027-00 BEARING,BALL
Ships in 7-10 business days
$7.61
143 286028-00 BAFFLE
Ships in 7-10 business days
$7.61
144 286029-00 FIELD & LEADS
Ships in 7-10 business days
$40.16
145 286030-00 CASE,FIELD
Ships in 7-10 business days
$32.47
146 286031-00 CAP,BRUSH
Ships in 7-10 business days
$1.52
147 286032-00 BRUSH
Ships in 7-10 business days
$4.63
148 286033-00 HOLDER,BRUSH
Ships in 7-10 business days
$6.83
149 286034-00 SCREW
Ships in 7-10 business days
$1.00
150 286035-00 PULLEY,MOTOR
Ships in 7-10 business days
$7.67
151 286036-00 PLATE,DEWALT
Ships in 7-10 business days
$4.07
152 286041-00 CORD/9'/14-3 SJ
Ships in 7-10 business days
$20.56
153 286037-00 WASHER
Ships in 7-10 business days
$1.00
154 286040-00 LABEL,WARNING
Ships in 7-10 business days
$1.00
155 286038-00 WRENCH,L
Ships in 7-10 business days
$7.08
156 286039-00 WRENCH,OPEN END
Ships in 7-10 business days
$3.00
Fig # Part # Part Name Availability Price
157 98000-09 WRENCH,HEX-4MM
Ships in 7-10 business days
$6.81
161 382589-00 LABEL,INSTR.
Ships in 7-10 business days
$1.00
162 382584-00 LABEL,WARNING
Ships in 7-10 business days
$1.00
163 382588-00 LABEL
Ships in 7-10 business days
$1.00
164 382586-00 LABEL,FEED
Ships in 7-10 business days
$1.00
165 94593-03 TERMINAL
Ships in 7-10 business days
$0.99
166 450213-00 TERMINAL,FEMALE
Ships in 7-10 business days
$1.00
167 450212-00 TERMINAL,MALE
Ships in 7-10 business days
$1.67
168 286424-00 SCREW,M3
Ships in 7-10 business days
$1.00
169 286425-00 SPRING
Ships in 7-10 business days
$1.61
174 429676-00 RUBBER BUMPER
Ships in 7-10 business days
$0.99
176 429701-00 SCREW & WASHER
Ships in 7-10 business days
$1.00
575 330045-13 SCREW,TAPTITE
Ships in 7-10 business days
$0.99
675 286052-00 SCREW
Ships in 7-10 business days
$1.00
800 286445-00 GREASE.14 OZ.
Ships in 7-10 business days
$11.45
Fig # Part # Part Name Availability Price
856 5140102-55 PLANR.VACUUM HOOD
Ships in 7-10 business days
$50.97
857 429615-00 VACUUM ADAPTOR
Ships in 7-10 business days
$5.69
