DC385 TYPE 1

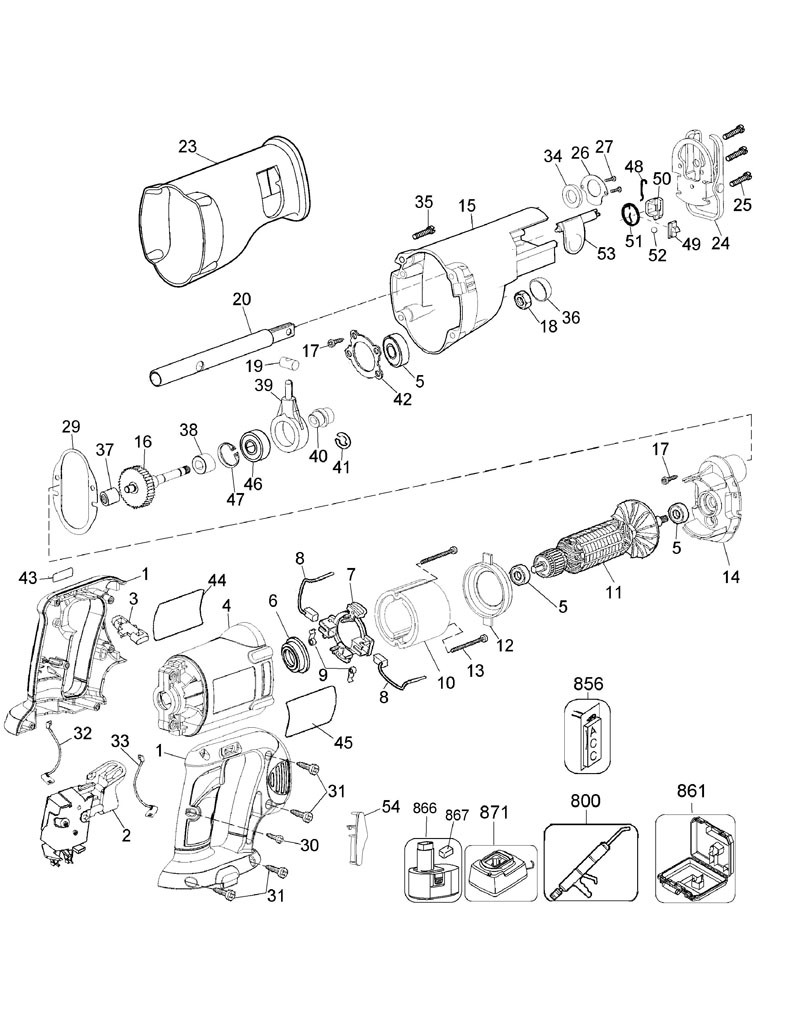

Tool Diagram

Ordering Instructions:

Scroll down the page to the parts listing below.

Find the parts that you are looking for and enter the quantity needed in the boxes on the right of the page.

Click Add Parts to Cart button at the bottom of the page to add these items to your Shopping cart.

Contact Us:

Enter the following values in the field below: captcha
Fig # Part # Part Name Availability Price
1 613840-00 CLAMSHELL SET
1 in stock
$10.74
2 152274-15 SWITCH,VSR
2 in stock
$64.46
3 607100-00 LOCK-OFF BUTTON
1 in stock
$1.75
4 382177-00 SA FIELDCASE 57MM YEL
Ships in 7-10 business days
$24.13
5 330003-04 BEARING
10 in stock
$9.66
6 445217-02 SLEEVE
Ships in 7-10 business days
$2.58
7 382178-01 BRUSH RING
1 in stock
$3.91
8 387558-01 BRUSH & LEAD
2 in stock
$5.48
9 445860-00 SPRING,BRUSH
2 in stock
$2.81
10 388232-01 MAGNET RING
Ships in 7-10 business days
$12.53
11 617777-00 ARMATURE
Ships in 7-10 business days
$20.58
12 392415-00 FAN BAFFLE RECIP
Ships in 7-10 business days
$1.05
14 382180-01 COVER GEAR CASE
Ships in 7-10 business days
$22.76
15 382625-01 GEAR CASE
Ships in 7-10 business days
$43.88
16 383883-00 GEAR & SHAFT
Ships in 7-10 business days
$43.13
Fig # Part # Part Name Availability Price
17 604609-00 SCREW TRI-ROUND 6-32 T-15
Ships in 7-10 business days
$1.05
18 382195-00 NUT,5/16-18 LH
Ships in 7-10 business days
$1.05
19 382187-00 PIN WRIST
Ships in 7-10 business days
$4.27
20 623504-01 OUTPUT SHAFT
Ships in 7-10 business days
$30.56
24 382191-01 SHOE ASSY
Ships in 7-10 business days
$15.50
25 142940-00 SCREW
2 in stock
$1.05
26 387218-00 SEAL RETAINER
Ships in 7-10 business days
$1.38
27 330045-43 SCREW METAL THD FORM M3X8 T10
Ships in 7-10 business days
$1.05
29 382626-00 GASKET ENFORCER
Ships in 7-10 business days
$1.93
30 682211-00 SCREW,TORX
Ships in 7-10 business days
$1.05
32 382629-00 WIRE,LEAD(BLK)
1 in stock
$1.69
34 617060-00 SHAFT SEAL
Ships in 7-10 business days
$1.31
36 383227-00 CAP
Ships in 7-10 business days
$1.69
37 93128-00 BEARING,NEEDLE
Ships in 7-10 business days
$2.84
38 647342-00 SERVICE KIT
Ships in 7-10 business days
$11.33
Fig # Part # Part Name Availability Price
39 382196-00 WOBBLE ASSY
Ships in 7-10 business days
$43.88
40 647342-00 SERVICE KIT
Ships in 7-10 business days
$11.33
41 58836-00 RING
Ships in 7-10 business days
$0.95
44 614878-00 LABEL ID
Ships in 7-10 business days
$0.92
45 620665-00 NAMEPLATE
Ships in 7-10 business days
$0.92
46 330003-12 BEARING
1 in stock
$8.13
47 384046-00 RETAINING RING
Ships in 7-10 business days
$1.05
49 383749-01 SLIDER
Ships in 7-10 business days
$3.15
50 604731-00 COLLAR BLADE CLAMP
Ships in 7-10 business days
$8.78
51 623343-00 SPRING
3 in stock
$0.92
52 903-00 BALL
2 in stock
$0.95
53 616501-00SV LEVER ASSY.
1 in stock
$10.12
54 387213-00 COVER
Ships in 7-10 business days
$1.84
800 761995-01 GREASE, 6 OZ.
Ships in 7-10 business days
$31.91
861 619795-00 KIT BOX
Ships in 7-10 business days
$29.93
Fig # Part # Part Name Availability Price
866 DC9096 BATTERY 18V XRP
4 in stock
$69.95
867 645221-00 BATTERY CAP
Ships in 7-10 business days
$0.98
871 DW9116 CHARGER 9.6V-18V NIHM
2 in stock
$69.99
